PROLINE (XT) PercuTrach® tracheostomy tubes
PROLINE PercuTrach® tracheostomy tubes with atraumatic inserters and the extralong PROLINE XT PercuTrach® tubes have been specifically developed for use during dilatational tracheostomy.
They are made of tissue-friendly polyurethane. Due to the excellent ratio between the inner and outer diameters they allow for maximum air flow.
The atraumatic inserter is perfectly matched to the ProLine/ ProLine XT outer cannula and can be securely locked in via its bayonet connection. It has a practical handle which incorporates elevations that prevent slipping.
All versions feature an advanced microthin cylindrical polyurethane cuff which adapts ideally to the trachea.
Secretion that accumulates above the cuff, can be removed through an integrated subglottic suction line, featured on our SUCTION models. This suction line is embedded perfectly into the outer cannula to avoid pressure necrosis.

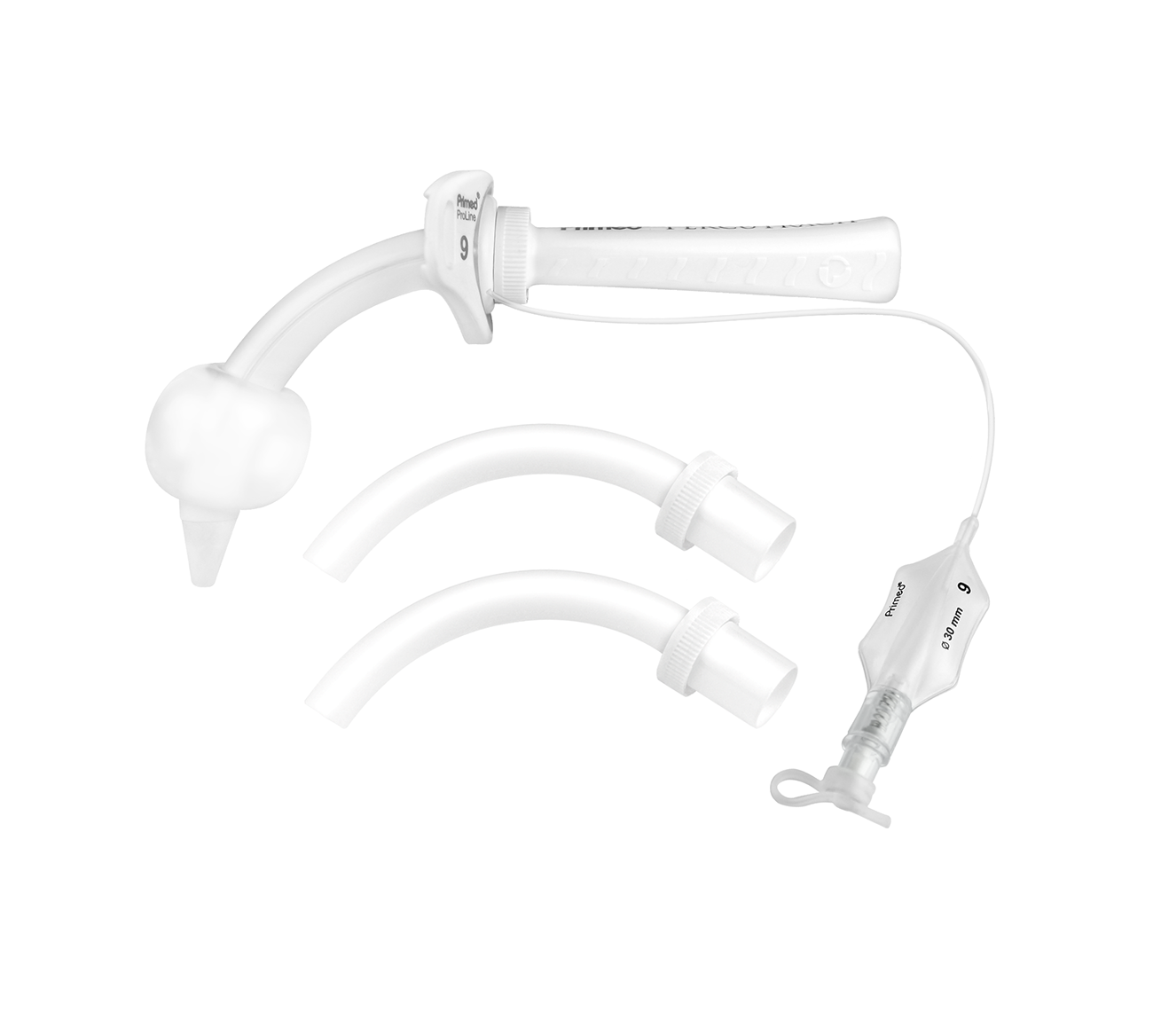

CUFF
Product features:
- Outer cannula with bajonet catch and particularly thin-walled polyurethane (PU) cuff
- With atraumatic inserter which ensures gentle and safe positioning of the tracheostomy tube during dilatational tracheostomy or subsequent tube changing
- Generous air supply thanks to extremely thin-walled design and cylindrical form
- With inner cannula system (all inner cannulas are made of radiopaque material for position control)
- 2 inner cannulas with white bajonet ring and swivelling 15 mm connector

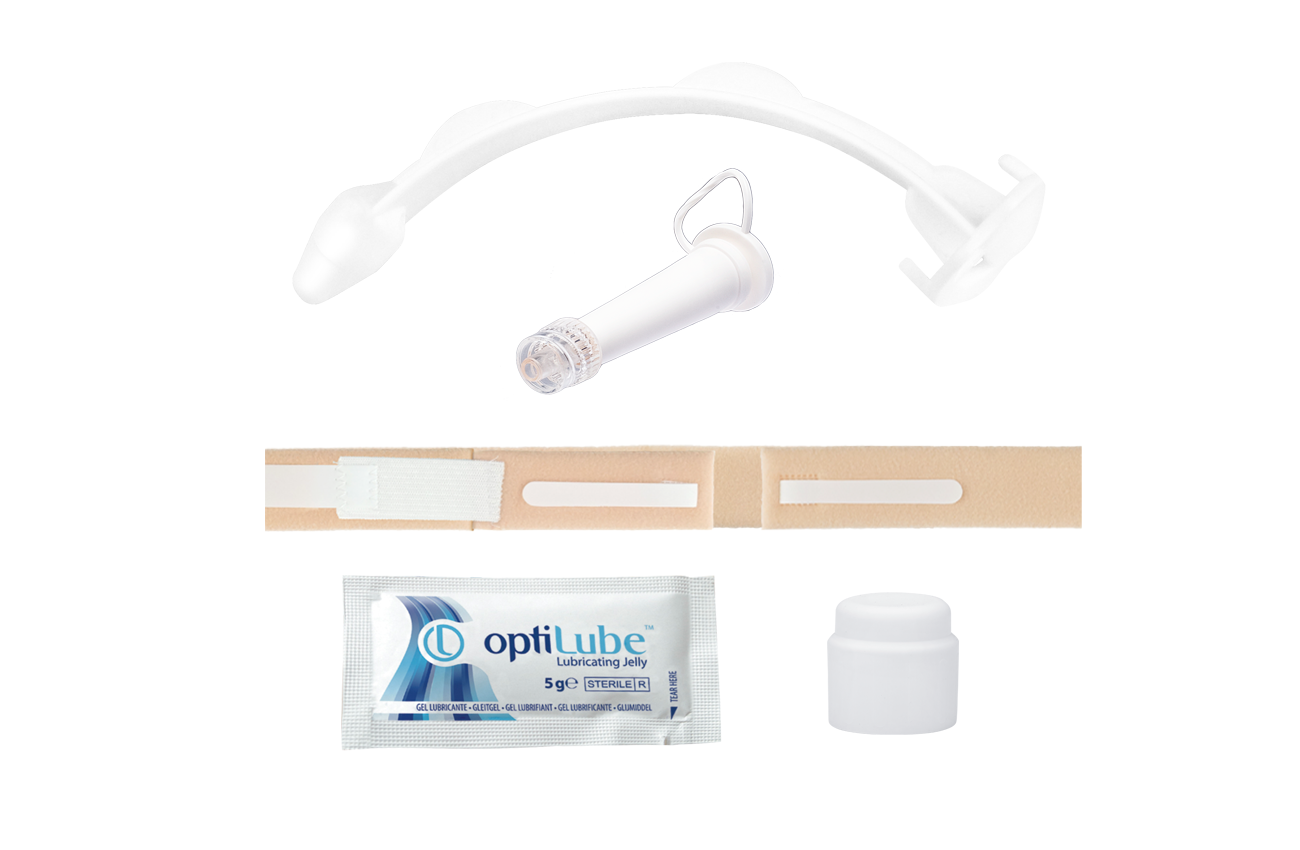

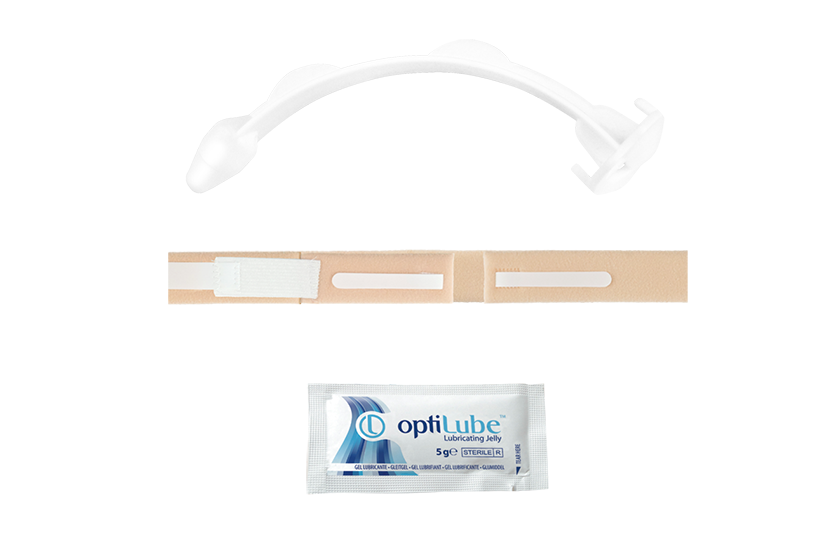

- Including obturator, neck strap and lubricant gel
- Material: PU, latex-free, DEHP-free
Indication
- Dilatation tracheostomy
- Tracheostomy/Laryngectomy
- To prevent aspiration
- Ventilation

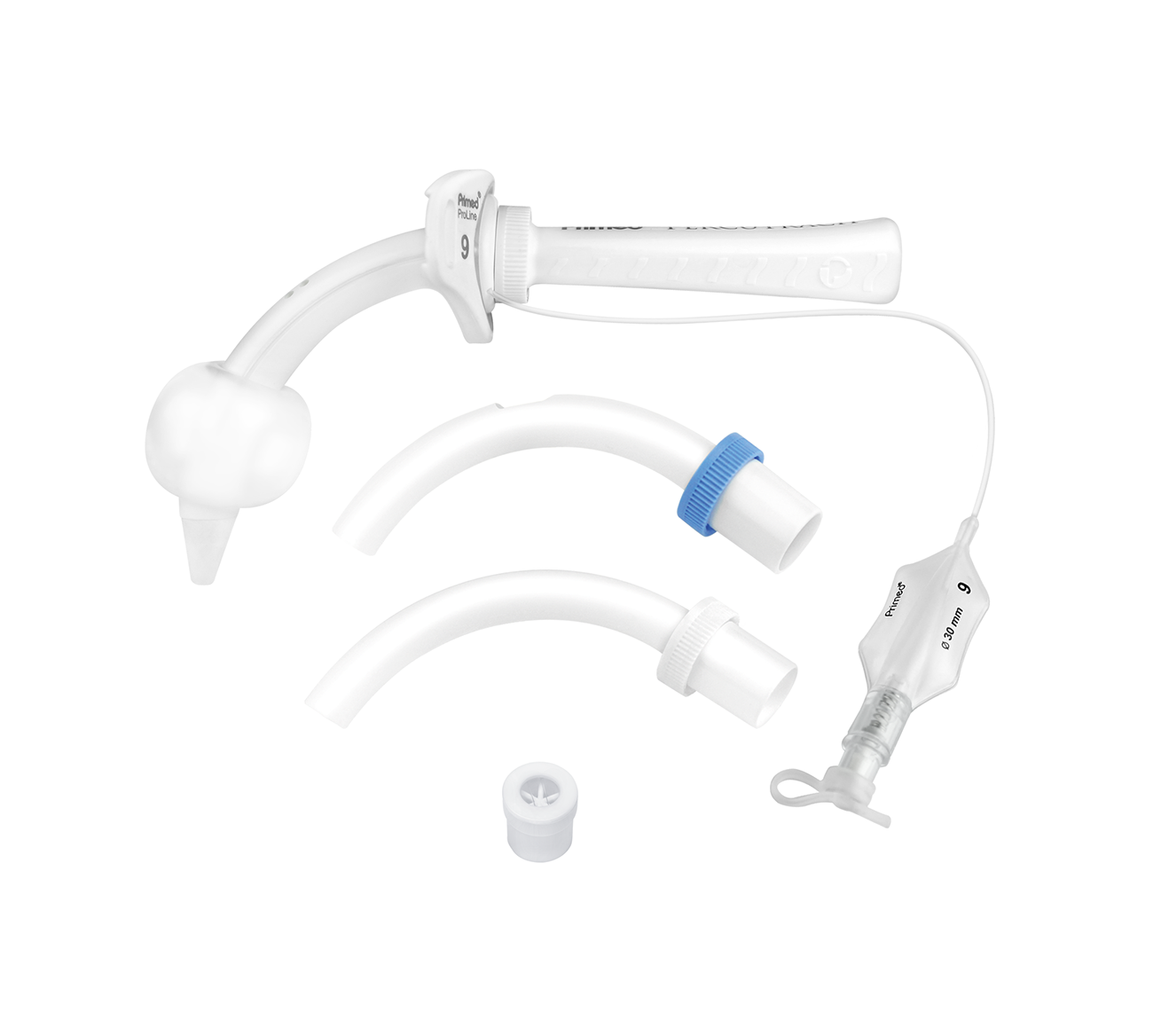

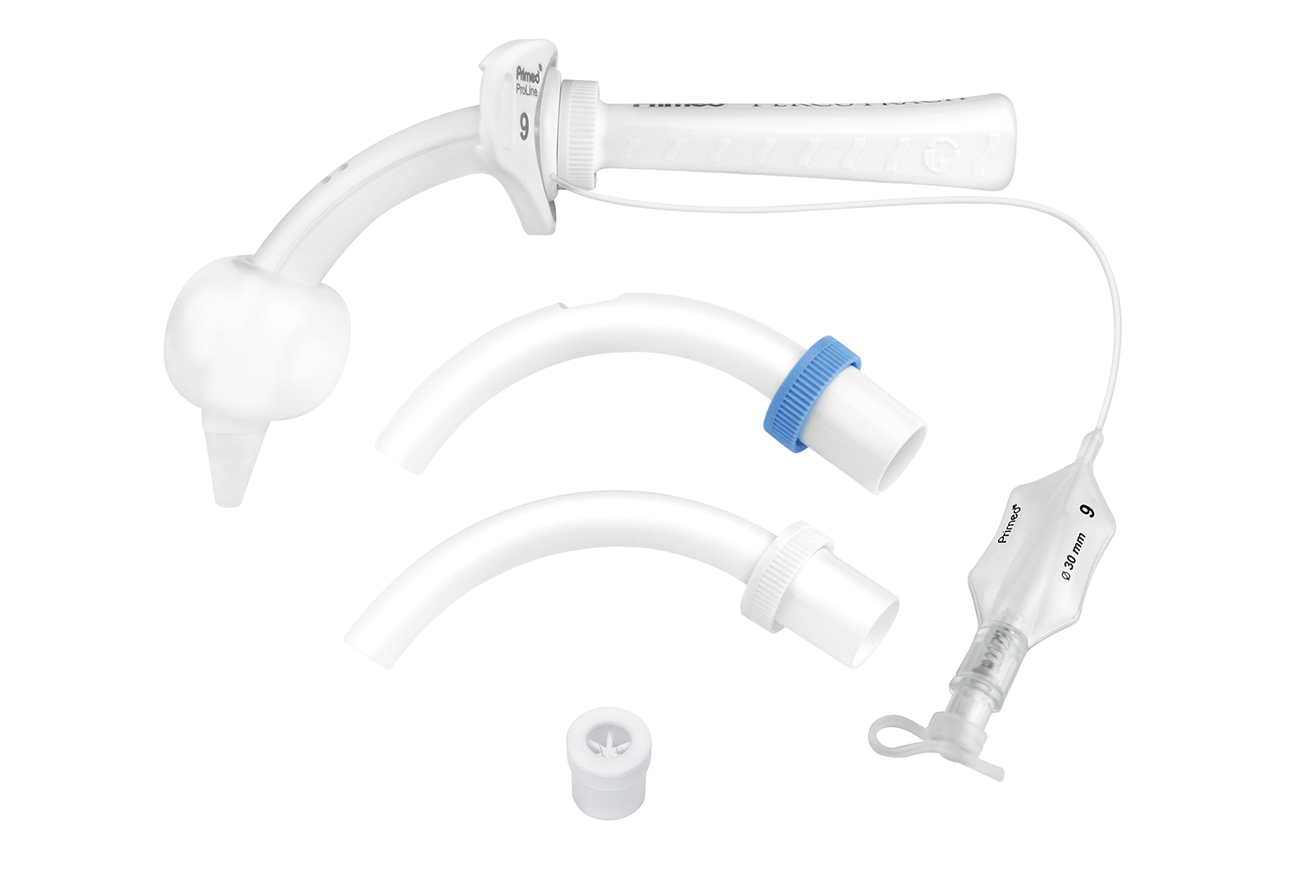

CUFF VOICE
Product features:
- Sieved outer cannula with bajonet catch and particularly thin-walled polyurethane (PU) cuff
- With atraumatic inserter which ensures gentle and safe positioning of the tracheostomy tube during dilatational tracheostomy or subsequent tube changing
- Generous air supply thanks to extremely thin-walled design and cylindrical form
- With inner cannula system (all inner cannulas are made of radiopaque material for position control)
- 1 inner cannulas with white bajonet ring and swivelling 15 mm connector
- 1 fenestrated inner cannula with blue bajonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve

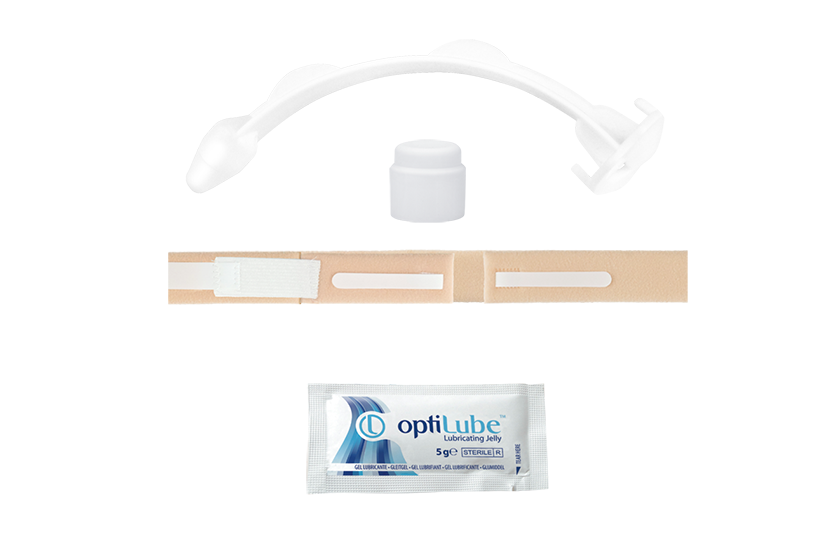

- Including obturator, neck strap, decannulation cap, speaking valve and lubricant gel
- Material: PU, latex-free, DEHP-free
Indication
- Dilatation tracheostomy
- Tracheostomy
- Phonation
- Ventilation

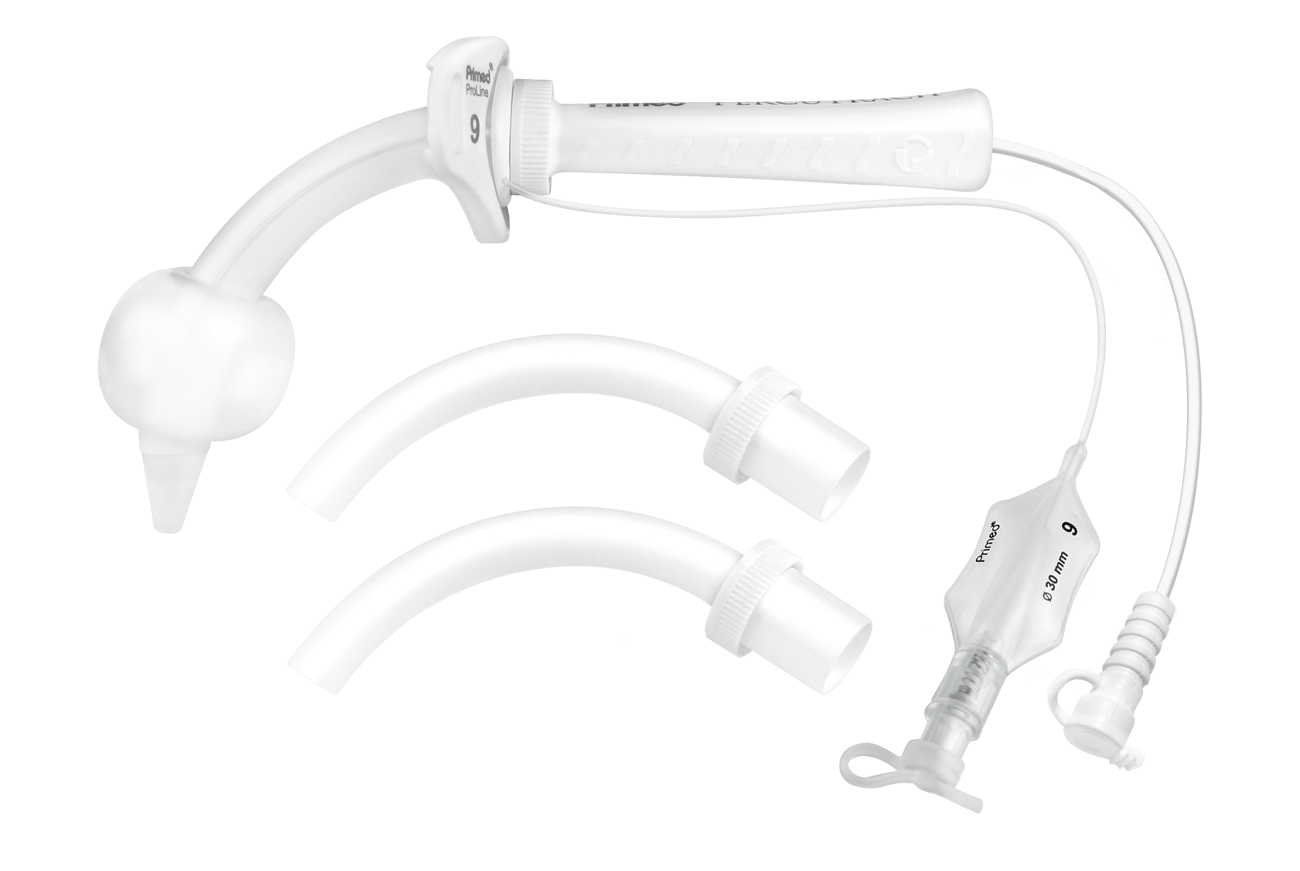

SUCTION
Product features:
- Outer cannula with bajonet catch, particularly thin-walled polyurethane (PU) cuff and subglottic suction function (features an integrated suction line for on demand subglottic secretion suctioning above the cuff)
- With atraumatic inserter which ensures gentle and safe positioning of the tracheostomy tube during dilatational tracheostomy or subsequent tube changing
- Generous air supply thanks to extremely thin-walled design and cylindrical form
- With inner cannula system (all inner cannulas are made of radiopaque material for position control)
- 2 inner cannulas with white bajonet ring and swivelling 15 mm connector

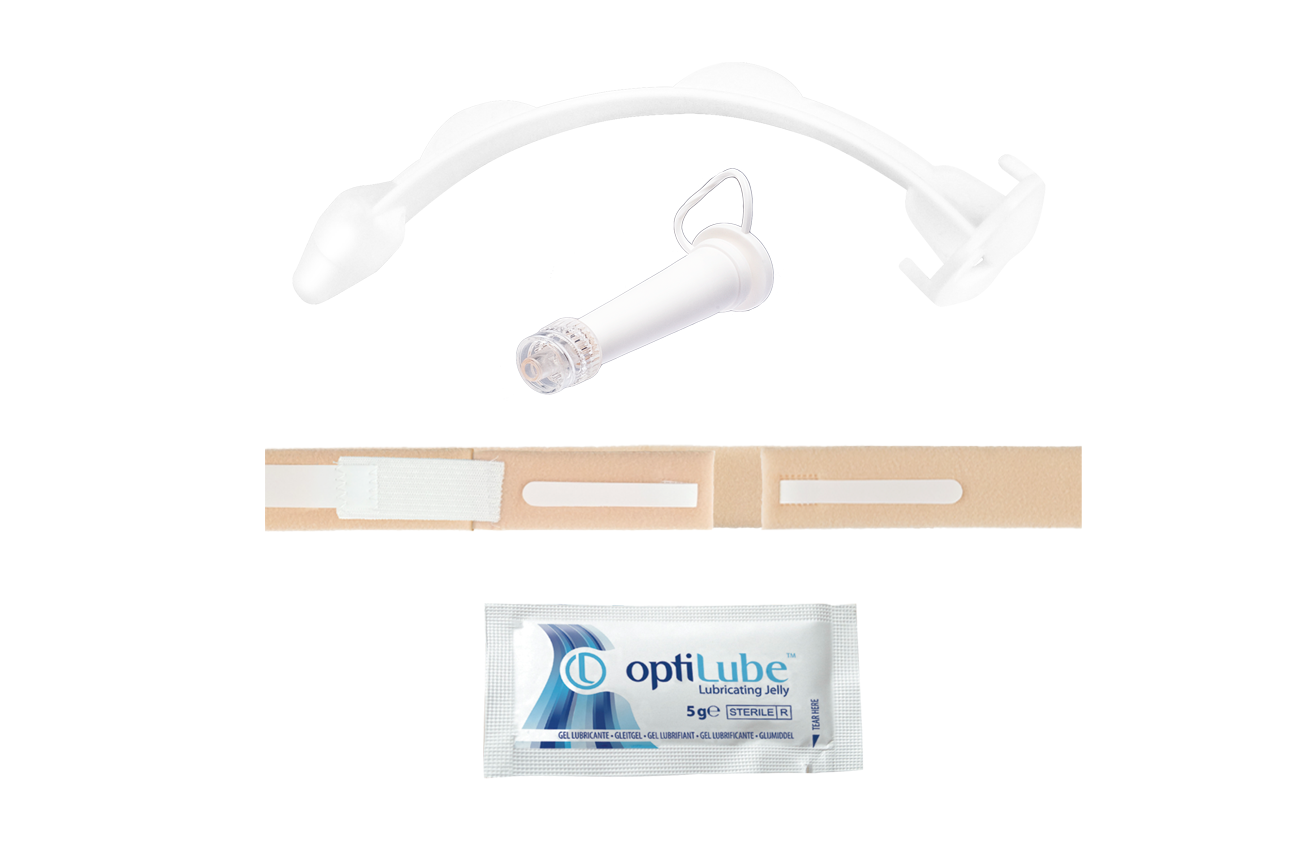

- Including obturator, neck strap, funnel connector and lubricant gel
- Material: PU, latex-free, DEHP-free
Indication
- Dilatation tracheostomy
- Tracheostomy/Laryngectomy
- To prevent aspiration
- Ventilation

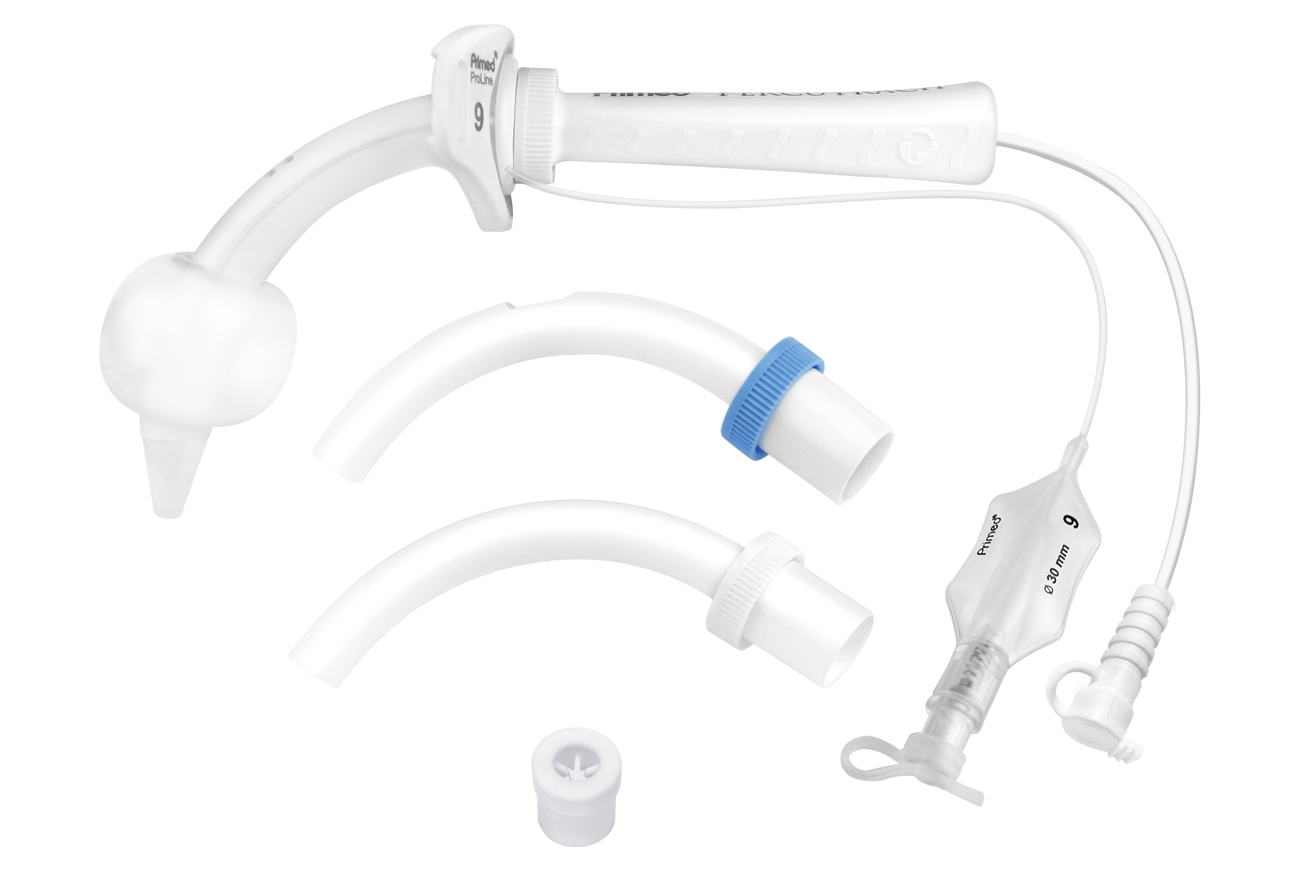

SUCTION VOICE
Product features:
- Sieved outer cannula with bajonet catch, particularly thin-walled polyurethane (PU) cuff and subglottic suction function (features an integrated suction line for on demand subglottic secretion suctioning above the cuff)
- With atraumatic inserter which ensures gentle and safe positioning of the tracheostomy tube during dilatational tracheostomy or subsequent tube changing
- Generous air supply thanks to extremely thin-walled design and cylindrical form
- With inner cannula system (all inner cannulas are made of radiopaque material for position control)
- 1 inner cannulas with white bajonet ring and swivelling 15 mm connector
- 1 fenestrated inner cannula with blue bajonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve
- Including obturator, neck strap, funnel connector, decannulation cap, speaking valve and lubricant gel
- Material: PU, latex-free, DEHP-free
Indication
- Dilatation tracheostomy
- Tracheostomy
- Phonation
- Ventilation

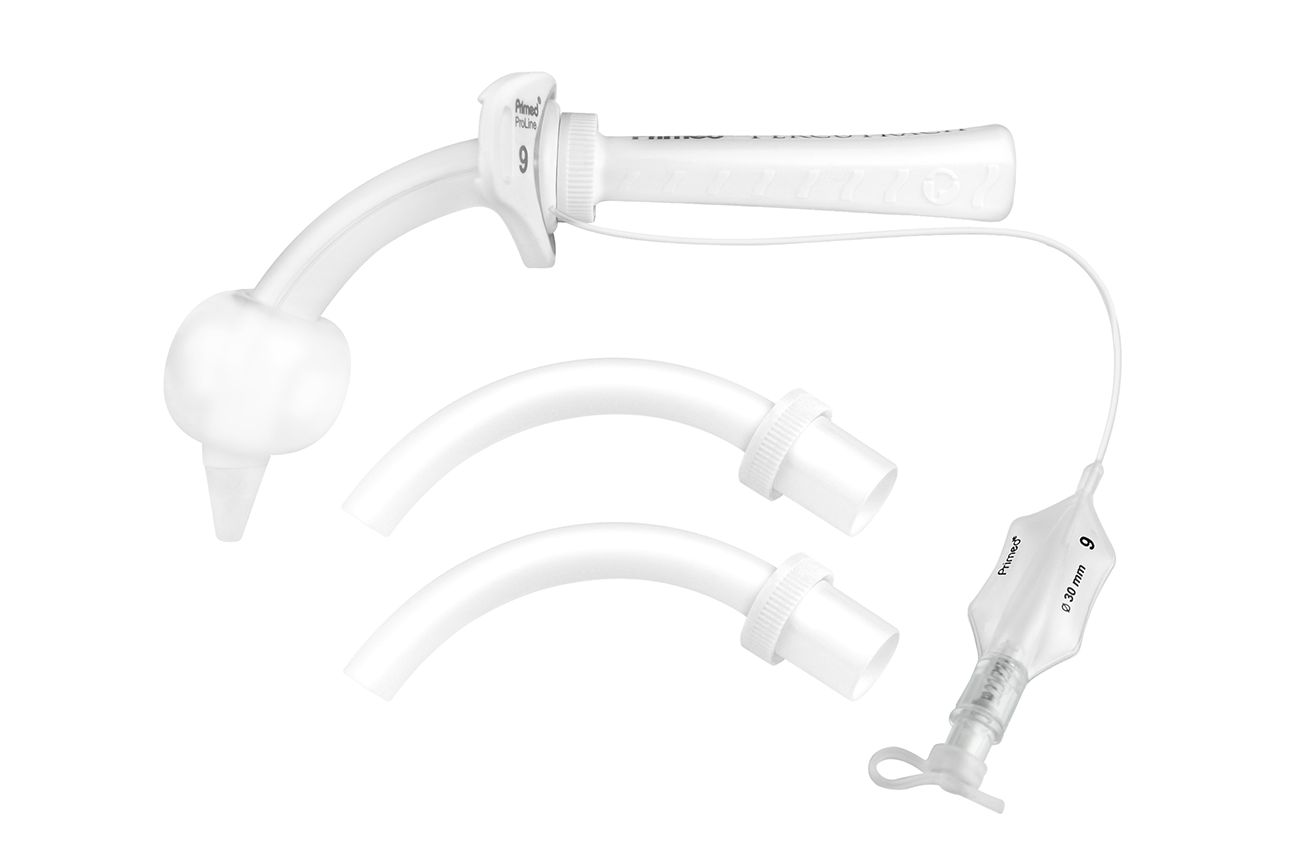

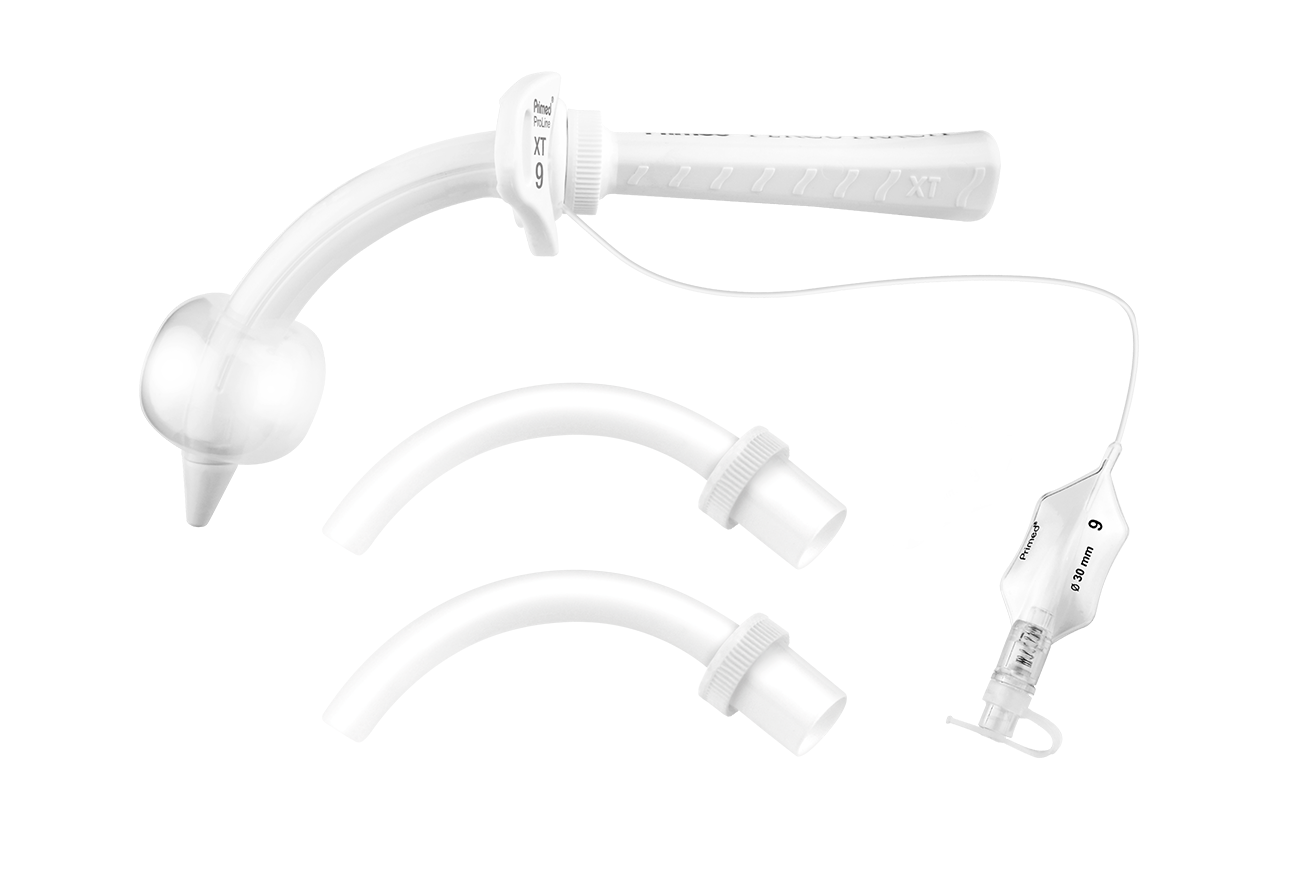

CUFF
Product features:
- Outer cannula with bajonet catch and particularly thin-walled polyurethane (PU) cuff
- With atraumatic inserter which ensures gentle and safe positioning of the tracheostomy tube during dilatational tracheostomy or subsequent tube changing
- Generous air supply thanks to extremely thin-walled design and cylindrical form
- With inner cannula system (all inner cannulas are made of radiopaque material for position control)
- 2 inner cannulas with white bajonet ring and swivelling 15 mm connector
- Including obturator, neck strap and lubricant gel
- Material: PU, latex-free, DEHP-free
Indication
- Dilatation tracheostomy
- Tracheostomy/Laryngectomy
- To prevent aspiration
- Ventilation

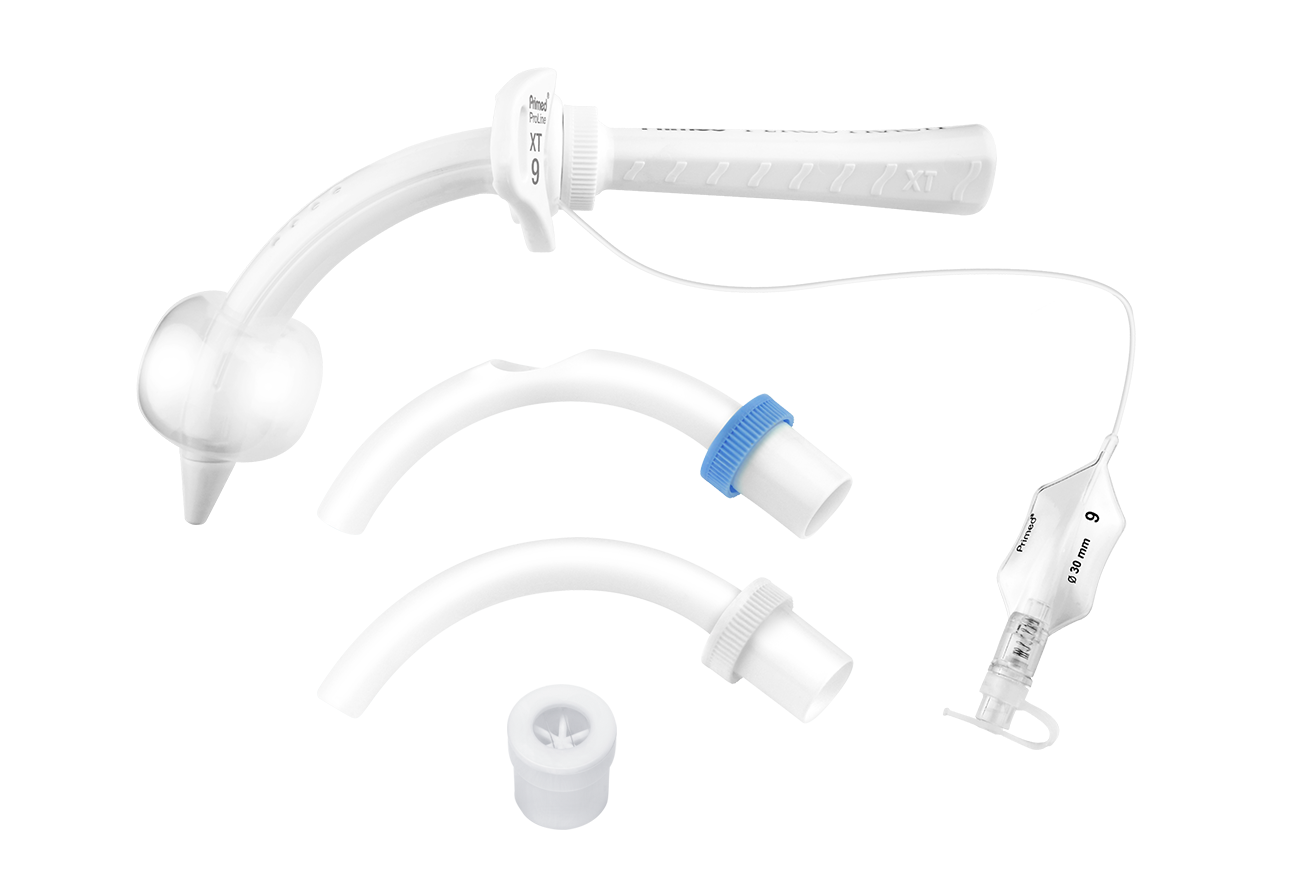

CUFF VOICE
Product features:
- Sieved outer cannula with bajonet catch and particularly thin-walled polyurethane (PU) cuff
- With atraumatic inserter which ensures gentle and safe positioning of the tracheostomy tube during dilatational tracheostomy or subsequent tube changing
- Generous air supply thanks to extremely thin-walled design and cylindrical form
- With inner cannula system (all inner cannulas are made of radiopaque material for position control)
- 1 inner cannulas with white bajonet ring and swivelling 15 mm connector
- 1 fenestrated inner cannula with blue bajonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve

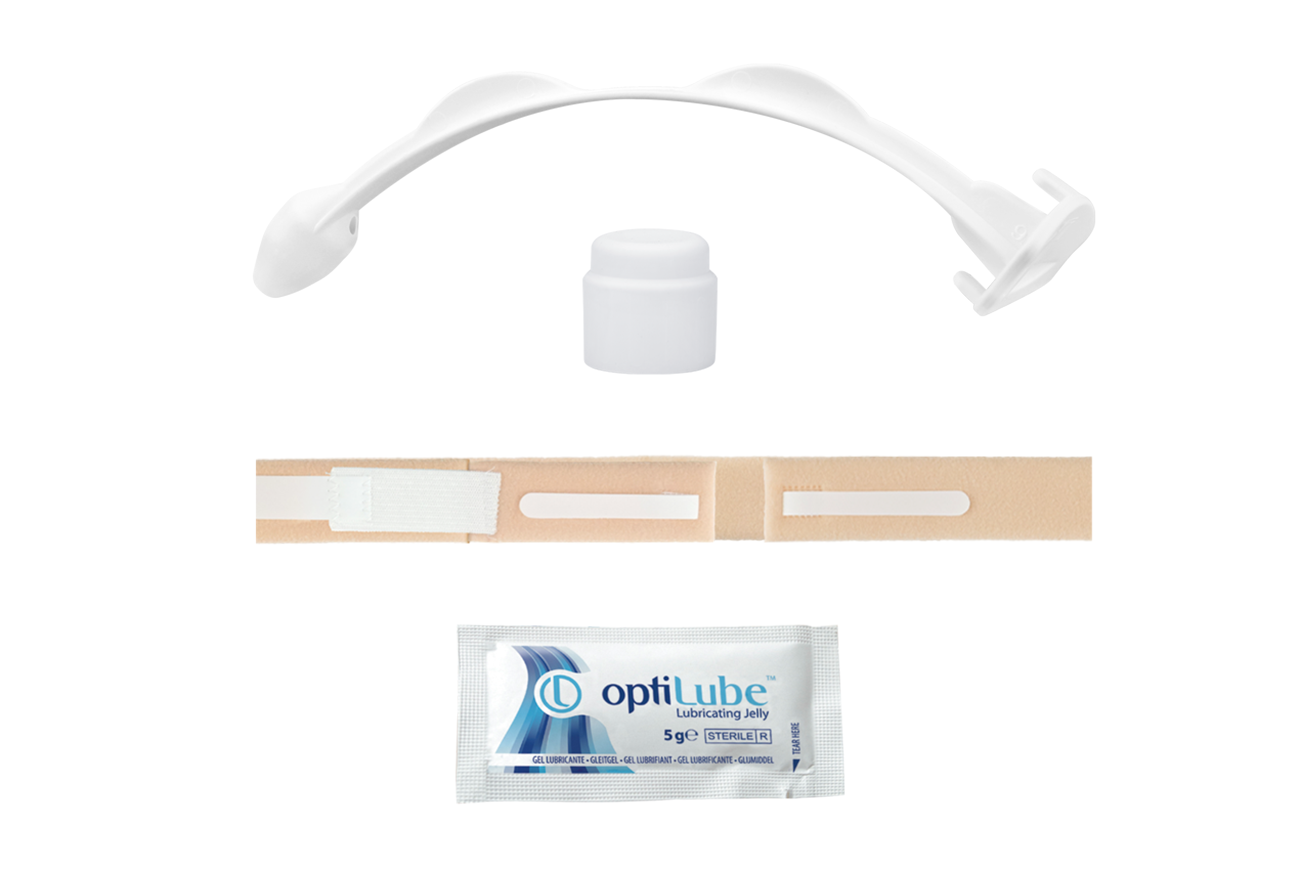

- Including obturator, neck strap, decannulation cap, speaking valve and lubricant gel
- Material: PU, latex-free, DEHP-free
Indication
- Dilatation tracheostomy
- Tracheostomy
- Phonation
- Ventilation
SUCTION
Product features:
- Outer cannula with bajonet catch, particularly thin-walled polyurethane (PU) cuff and subglottic suction function (features an integrated suction line for on demand subglottic secretion suctioning above the cuff)
- With atraumatic inserter which ensures gentle and safe positioning of the tracheostomy tube during dilatational tracheostomy or subsequent tube changing
- Generous air supply thanks to extremely thin-walled design and cylindrical form
- With inner cannula system (all inner cannulas are made of radiopaque material for position control)
- 2 inner cannulas with white bajonet ring and swivelling 15 mm connector
- Including obturator, neck strap, funnel connector and lubricant gel
- Material: PU, latex-free, DEHP-free
Indication
- Dilatation tracheostomy
- Tracheostomy/Laryngectomy
- To prevent aspiration
- Ventilation

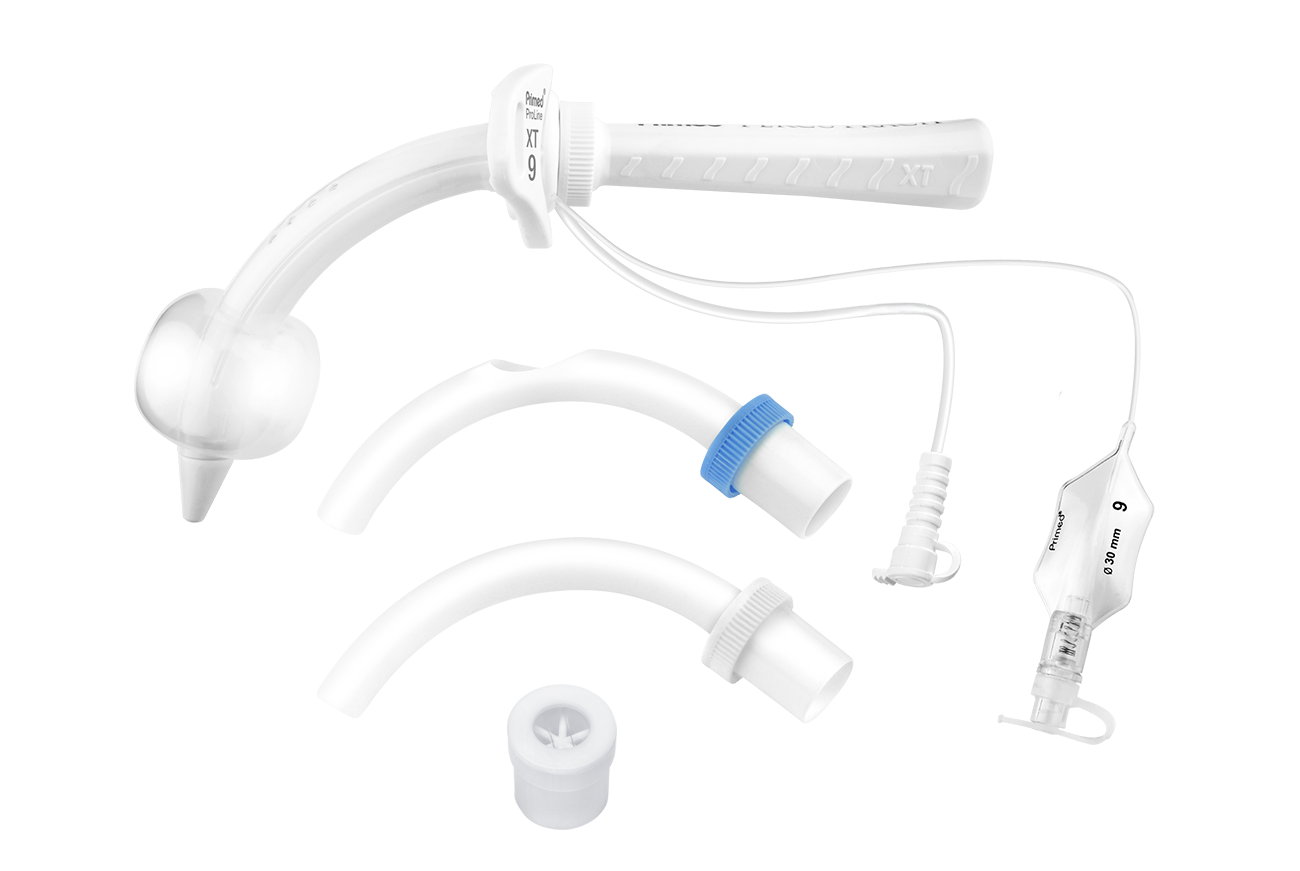

SUCTION VOICE
Product features:
- Sieved outer cannula with bajonet catch, particularly thin-walled polyurethane (PU) cuff and subglottic suction function (features an integrated suction line for on demand subglottic secretion suctioning above the cuff)
- With atraumatic inserter which ensures gentle and safe positioning of the tracheostomy tube during dilatational tracheostomy or subsequent tube changing
- Generous air supply thanks to extremely thin-walled design and cylindrical form
- With inner cannula system (all inner cannulas are made of radiopaque material for position control)
- 1 inner cannulas with white bajonet ring and swivelling 15 mm connector
- 1 fenestrated inner cannula with blue bajonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve

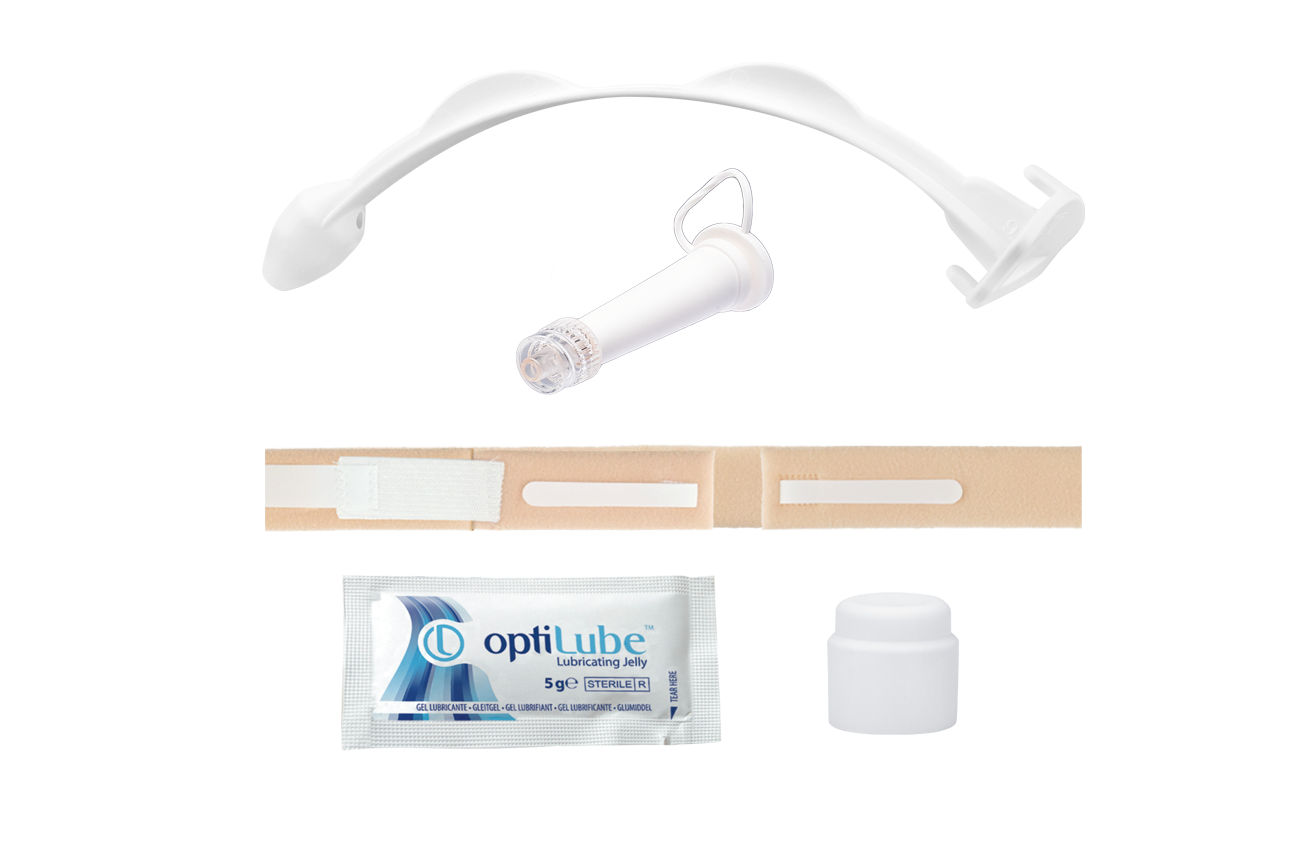

- Including obturator, neck strap, funnel connector, decannulation cap, speaking valve and lubricant gel
- Material: PU, latex-free, DEHP-free
Indication
- Dilatation tracheostomy
- Tracheostomy
- Phonation
- Ventilation
OPTIONAL ACCESSORIES
Product video PercuTrach® PDT Set Type 1 with ProLine PercuTrach®
